● Performance characteristics
The structure is compact, covers an area of small, reduce the clean workshop area, reduce the energy consumption of the air clean.
The continuous tension membrane technology, reduce bag location take time, bag making high efficiency.
Bag width can be adjusted, reduce the convenient with film quantity, save costs and bag type is more beautiful.
Main transmission motor and long stroke cylinder servo institutions, smooth operation, good reliability, small impact improve production ability.

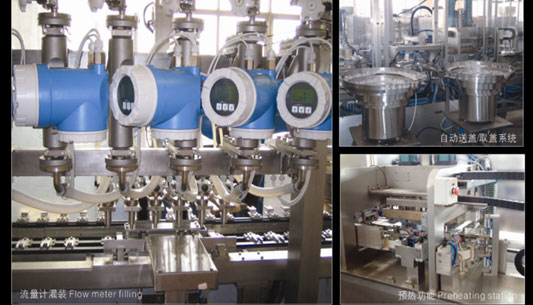

In front of a group of forming an excuse, preheat preheat institutions interface, it is suitable for the full thermal bonding different manufacturer film and the interface between the welding forming, ensure that leak bag rate is extremely low.

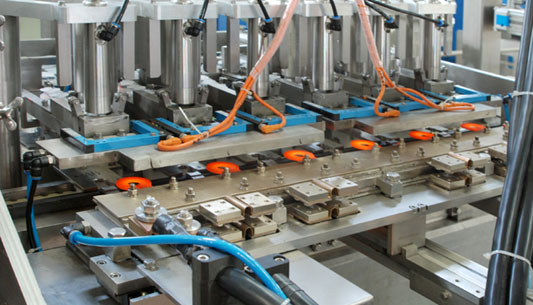

Forming institution is approved by the optimization design improve the welding stations speed.
Bag relay in surface of the interface are no longer with parts contact, to eliminate the visible foreign matter production.

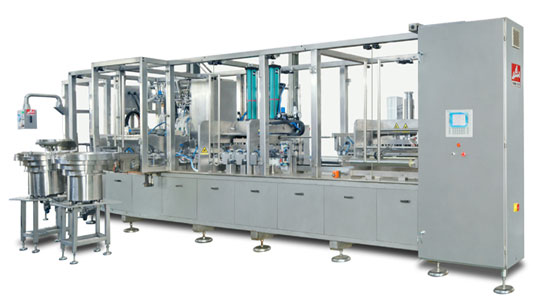

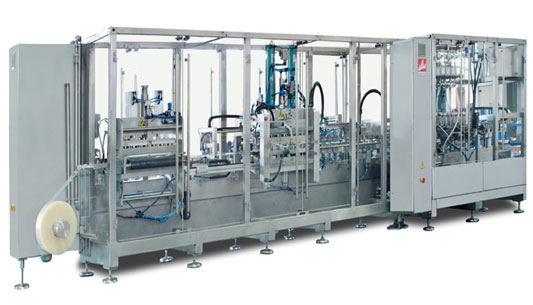

The overall design of the desktop machine, be in place convenient, debugging time is short, easy to clean.
| Model Item | SRD2500 | SRD3800 | SRD5000 | SRD7500 | SRD10000 |
|---|
| Max Production Capacity(b/h) | 2500 | 3800 | 5000 | 7500 | 10000 |
| Bag-making number each time | 2 | 3 | 4 | 6 | 8 |
| Filling and sealing number each time | 2 | 3 | 4 | 6 | 16 |
| Electric capacity(kw/v/Hz) | 25/380/50 | 28/380/50 | 32/380/50 | 43/380/50 | 60/380/50 |
| (0.6Mpa)dry,oil-free compressed air consumption(L/min) | 2000 | 3000 | 4000 | 5000 | 5500 |
| (0.4Mpa)clean air consumotion(L/min) | 800 | 1200 | 1500 | 2000 | 2000 |
| Cooling water consumption | 15-20℃300L/h |
| Filling drug solution | T≤50℃0.1-0.2Mpa |

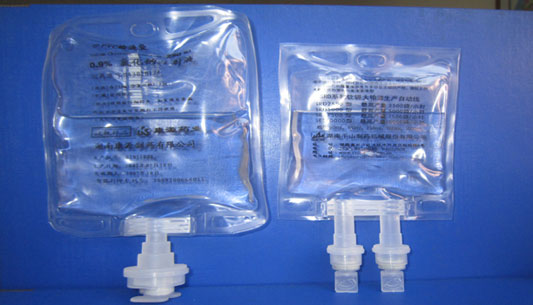

| Bag making film | Non-PVC double layer flat film Film thickness:190±20um |
| Film canister size | Inner diameter:Ø150; outer diamerer of film canister≤Ø600 |
| Bag making shape | Single tube, heat welding sealing |
| Printing Method | Heat transferring printing or intelligent foil printing, bar-code printing | Heat transferring printing |
| The inner diameter for ribbon canister | Ø76 |
| Noise | ＜75dB |
| Main mater | 304 stainless steel.The contact part with drug solution is 316L,which conforms to required material of GMP |
| Specification | 50ml、100ml、250ml、500ml、1000ml | 100ml、250ml、500ml | 50ml、 100ml、 250ml |
| Weigt | 5000kg | 6000kg | 7000kg | 8000kg | 8000kg |
| Overall dimension(L×W×H) | 7650×2335×2500 | 6100×2880×2140 | 9600×2250×2400 | 8400×2880×2140 | 3200×2880×2140 |
